Convention: All wall elevations are interior views (seen from inside the room looking at the wall). Ceiling views are reflected ceiling plans (RCP, looking up). All heights are from Finished Floor Level (AFF). Acoustic ceiling height = 2.75 m in VO Live + Control Room; 3.40 m in Video/Podcast.

Interior Elevations

Comprehensive wall elevation drawings for 3 rooms. Acoustic treatments (panels, corner bass traps, 125Hz membrane traps, QRD diffusers), electrical infrastructure (power outlets, data jacks, stagebox), doors, windows, and lighting — all from SSOT via DXF.

acoustics5 update: The study now covers 3 acoustically treated rooms — VO Live, Control Room, and Video/Podcast (the merged full-depth east room, with a high 3.40 m ceiling) — plus a buffer zone. Control Room first-reflection panels are on the East + West walls (not South). Exact placement is computed by the S3 elevation engine (MediaVerse-Resplit-Fork/engine) and shown on the mm-accurate sheets above.

LEGEND: Absorption panel Corner bass trap (300mm VO+CR / 400–600mm Video/Podcast) 125Hz membrane (M) QRD diffuser Acoustic door Window OW-1 Ceiling/Floor zone

Rev C — mm-accurate wall elevations (authoritative)

True-scale interior elevations generated from the locked SSOT + S3.json geometry (matplotlib), collision-verified (0 overlaps) and council-reviewed. Each is drawn as an interior view — you stand inside the room looking at the wall; the subtitle states the viewing direction.

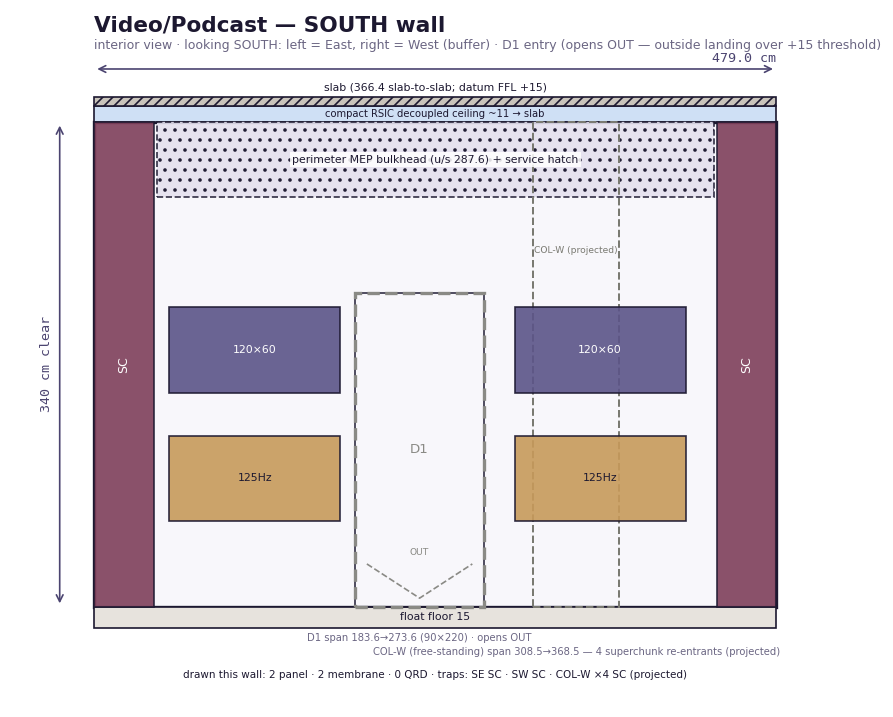

Video/Podcast South wall
Video/Podcast — South (D1 entry)

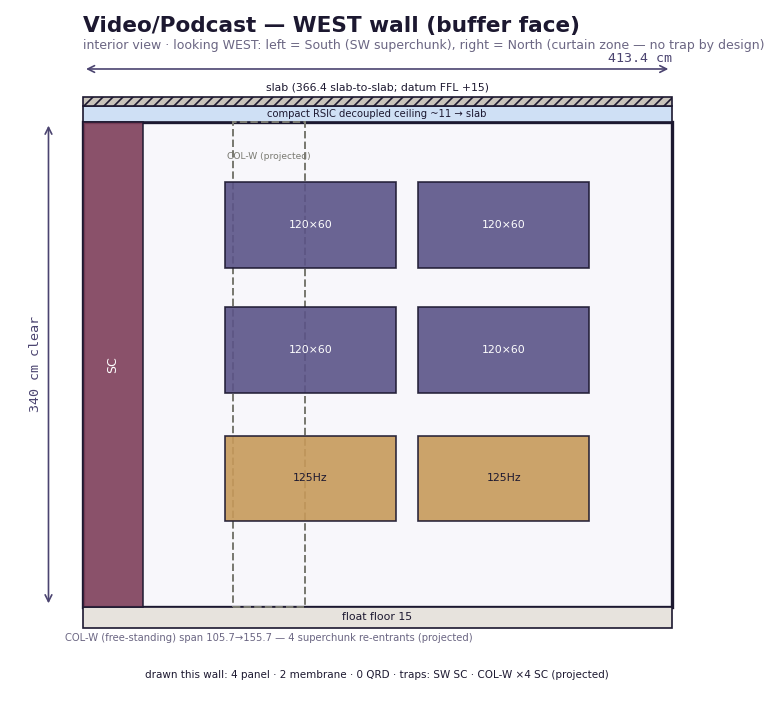

Video/Podcast West wall
Video/Podcast — West (buffer face)

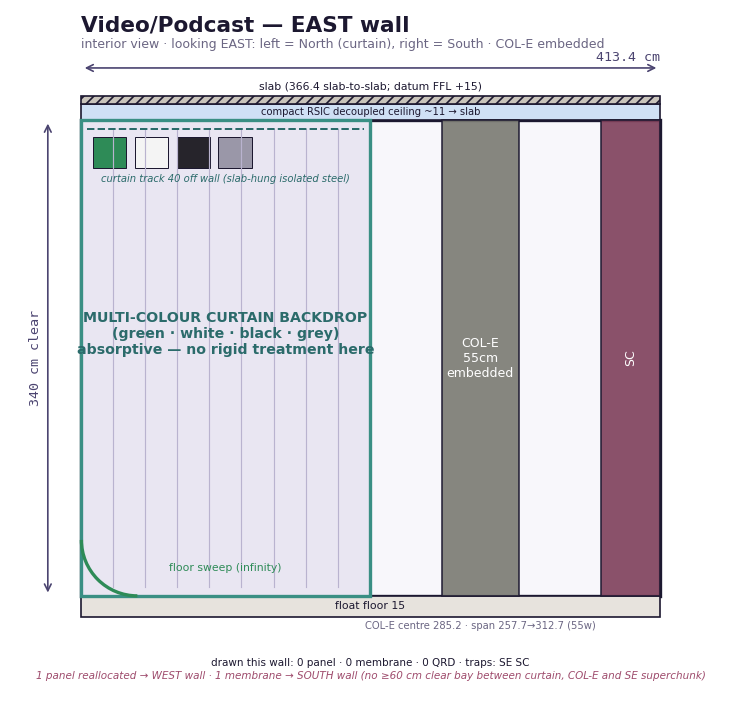

Video/Podcast East wall
Video/Podcast — East (COL-E, curtain N-half)
Video/Podcast North wall

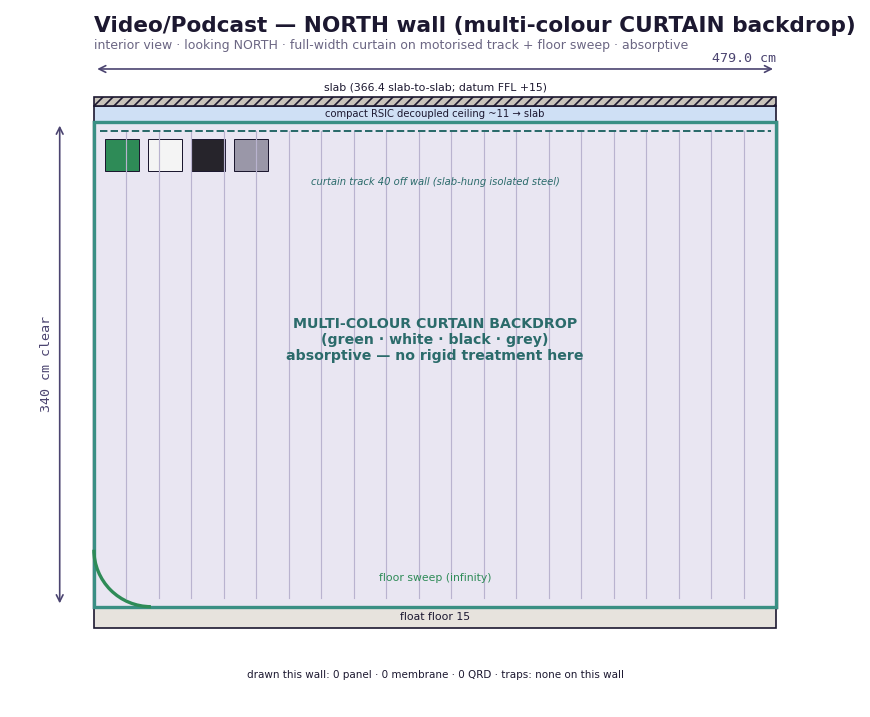

Video/Podcast — North (curtain backdrop)
Control North wall

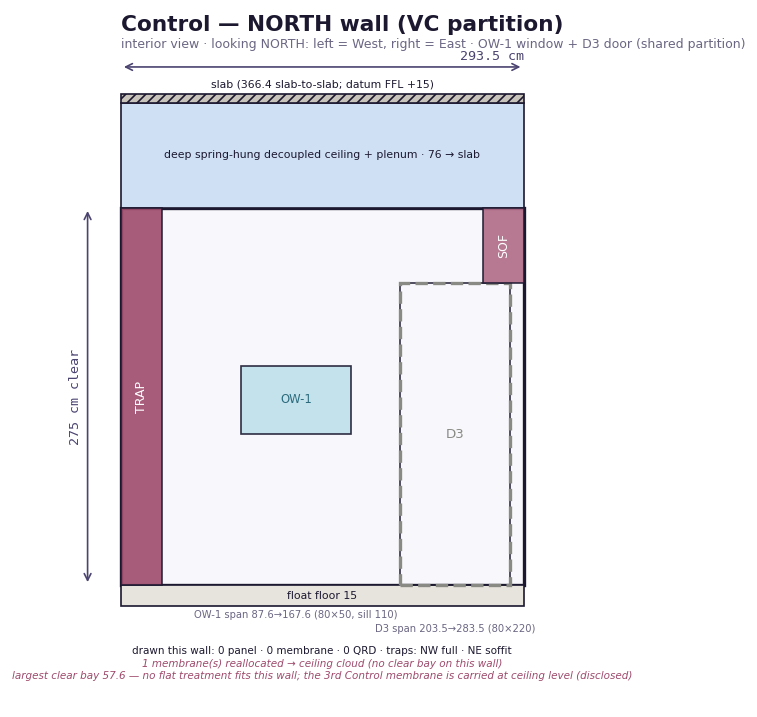

Control — North (OW-1 + D3, soffit NE)

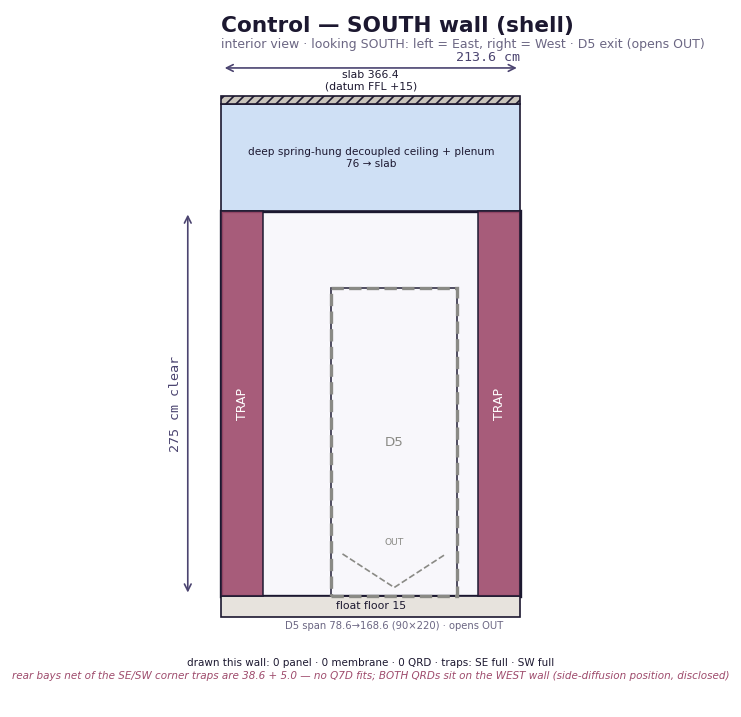

Control South wall
Control — South (D5 exit)

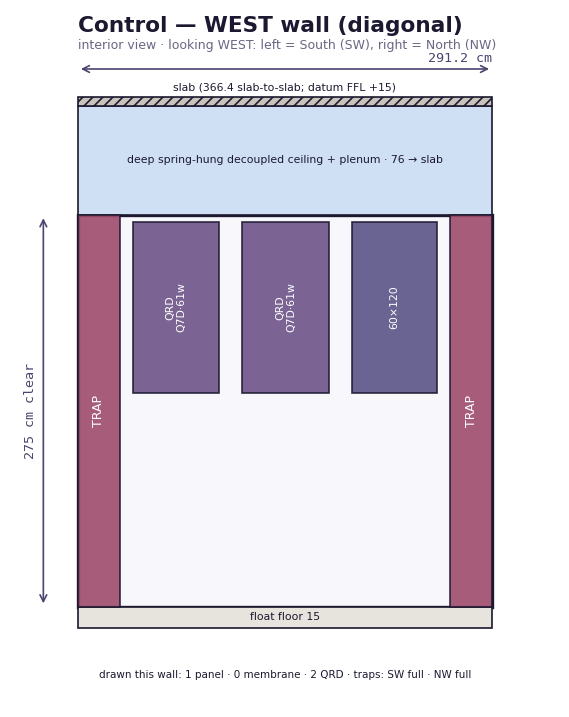

Control West wall
Control — West (diagonal)

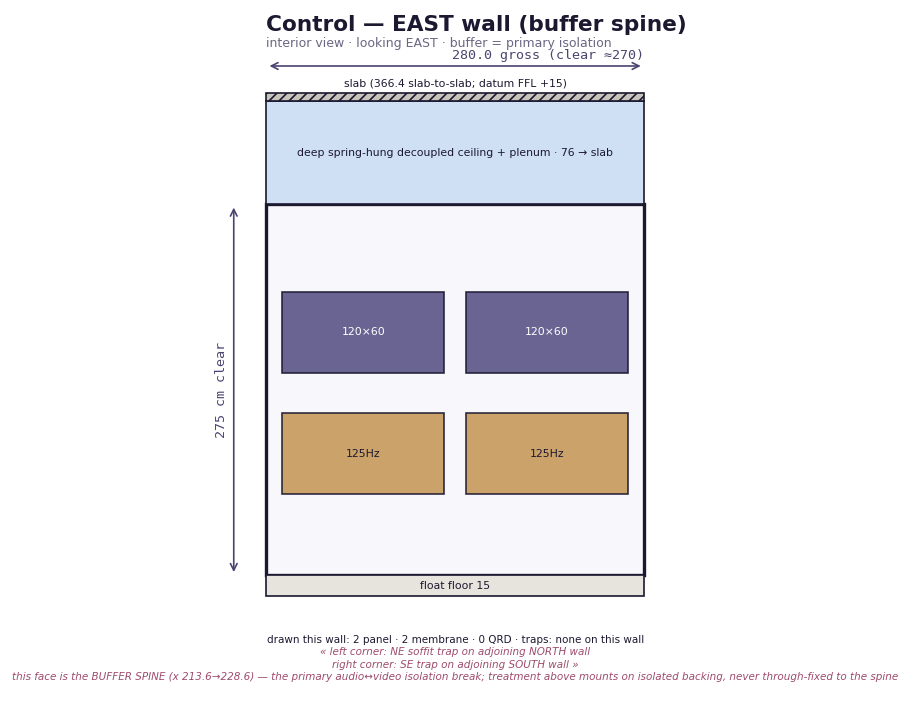

Control East wall
Control — East (buffer spine)

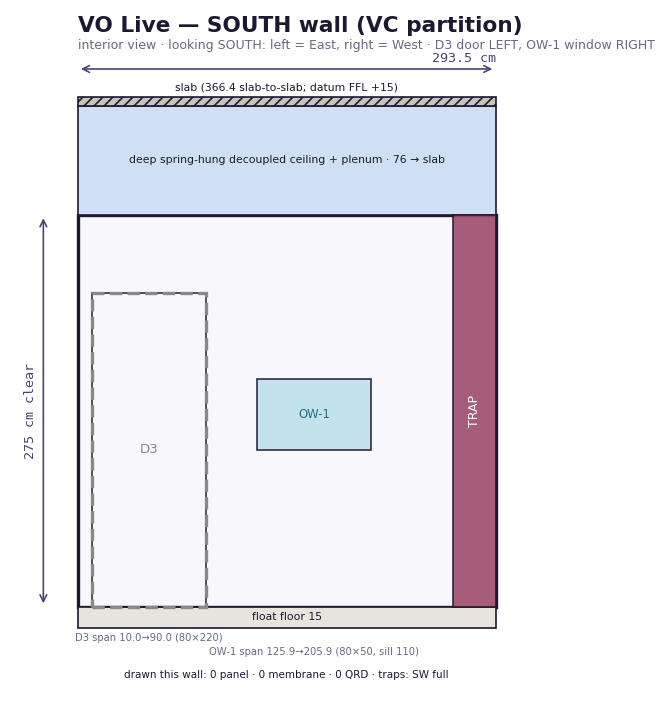

VO Live South wall
VO Live — South (D3 door L, OW-1 window R)
VO Live North wall

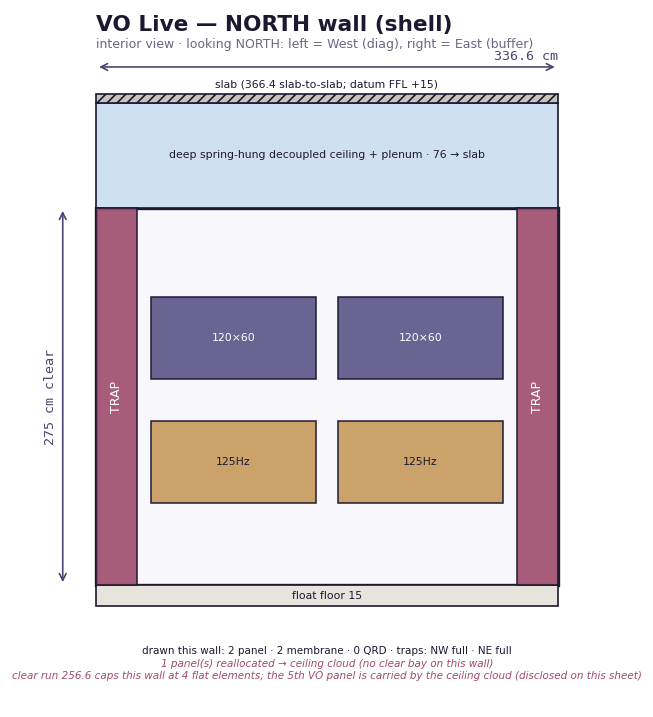

VO Live — North (shell)

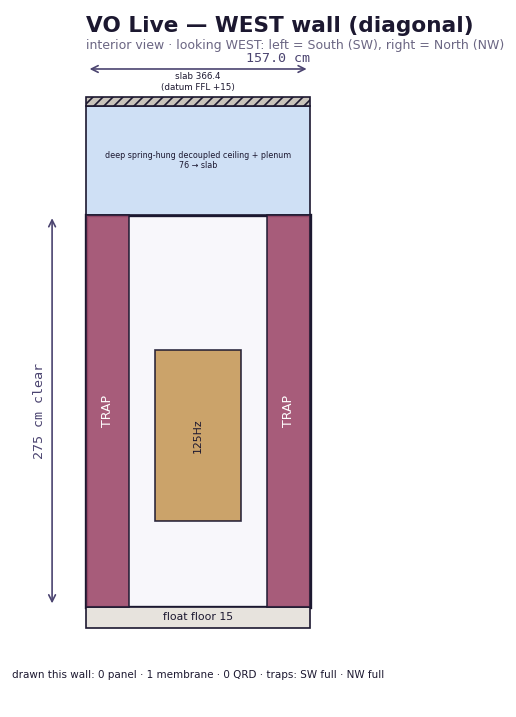

VO Live West wall
VO Live — West (diagonal)
VO Live East wall

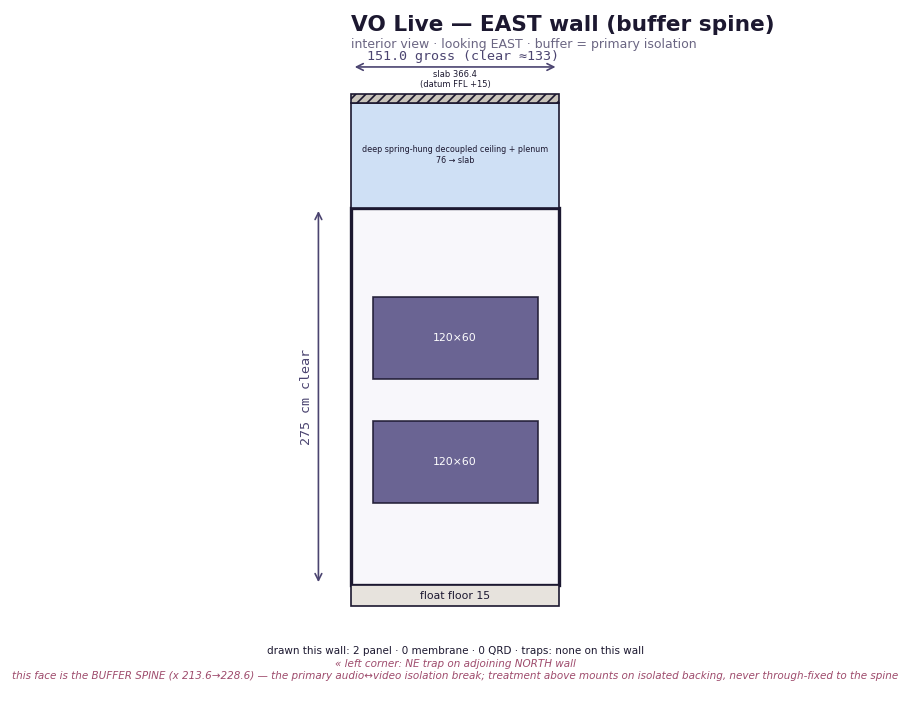

VO Live — East (buffer spine)

Note: these mm-accurate elevations are generated from the locked SSOT + S3.json geometry (matplotlib), collision-verified and council-reviewed. The earlier legacy schematic diagrams have been retired. Wall/floor/ceiling build-up sections: see the Sylomer Layout and Installation Sequence pages.
